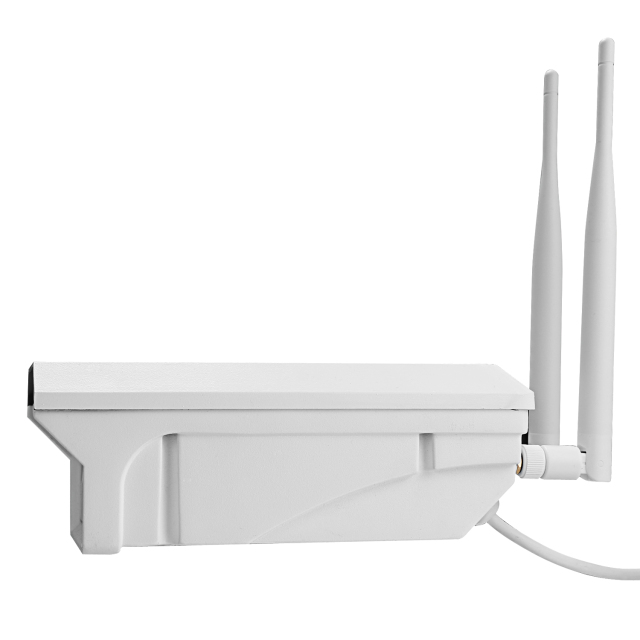

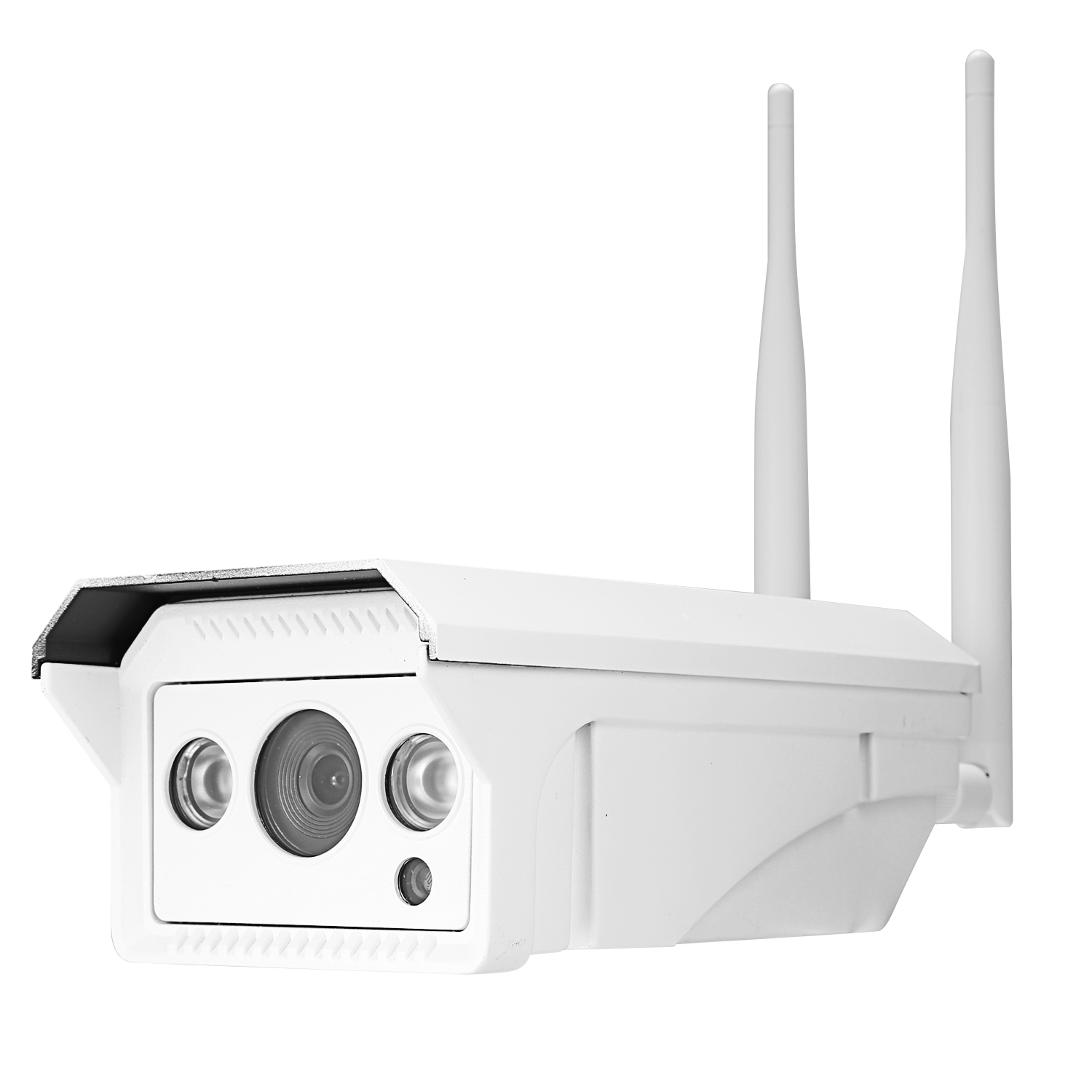

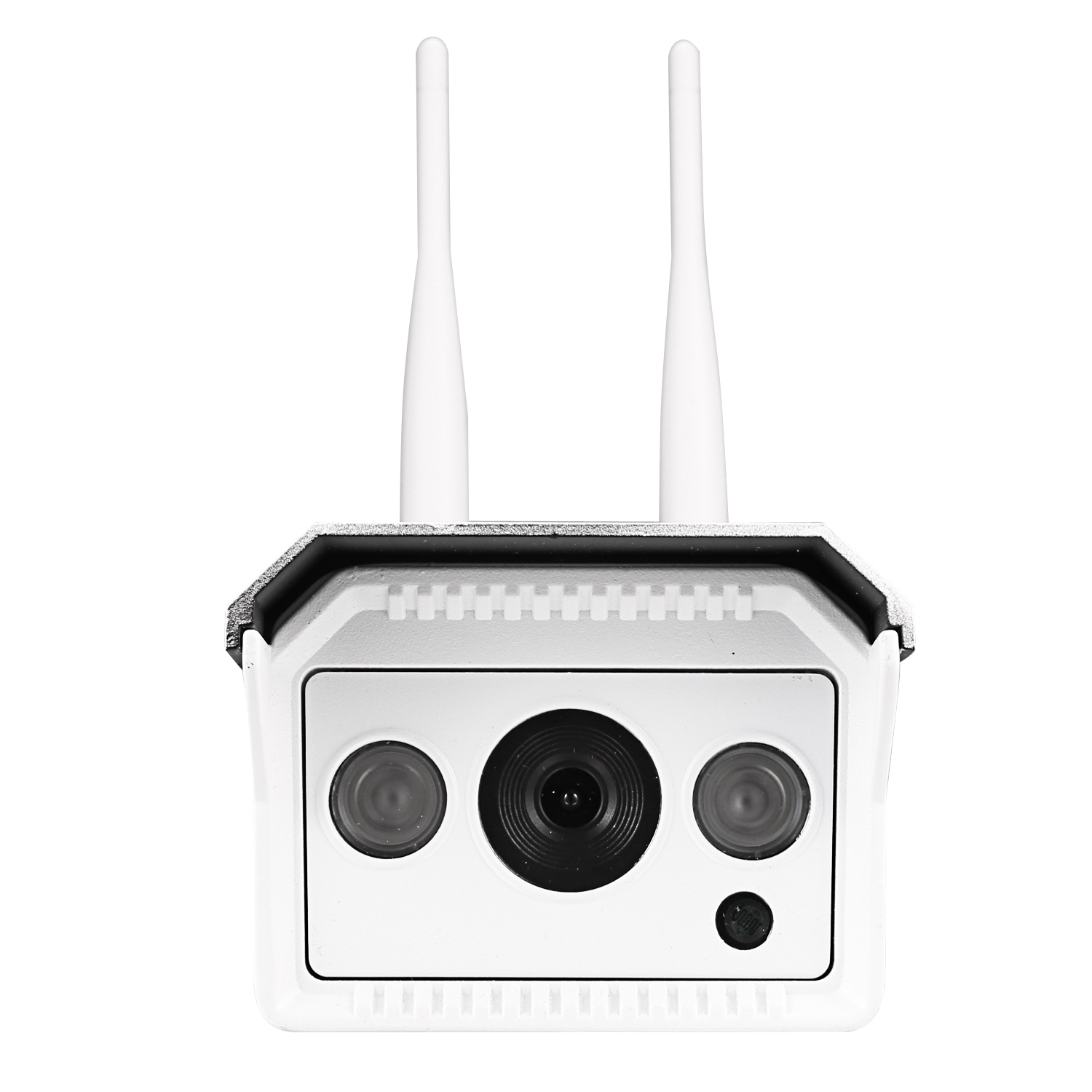

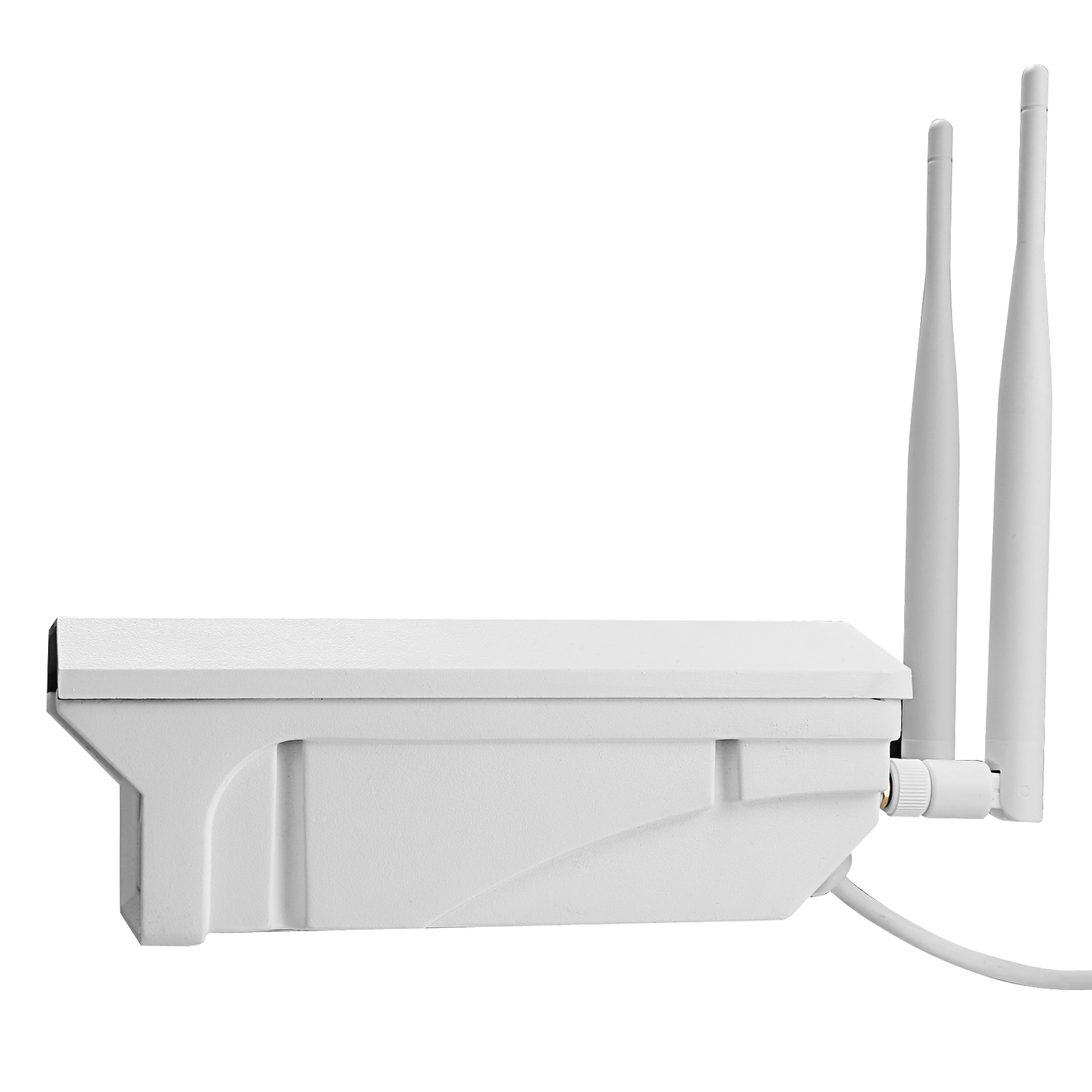

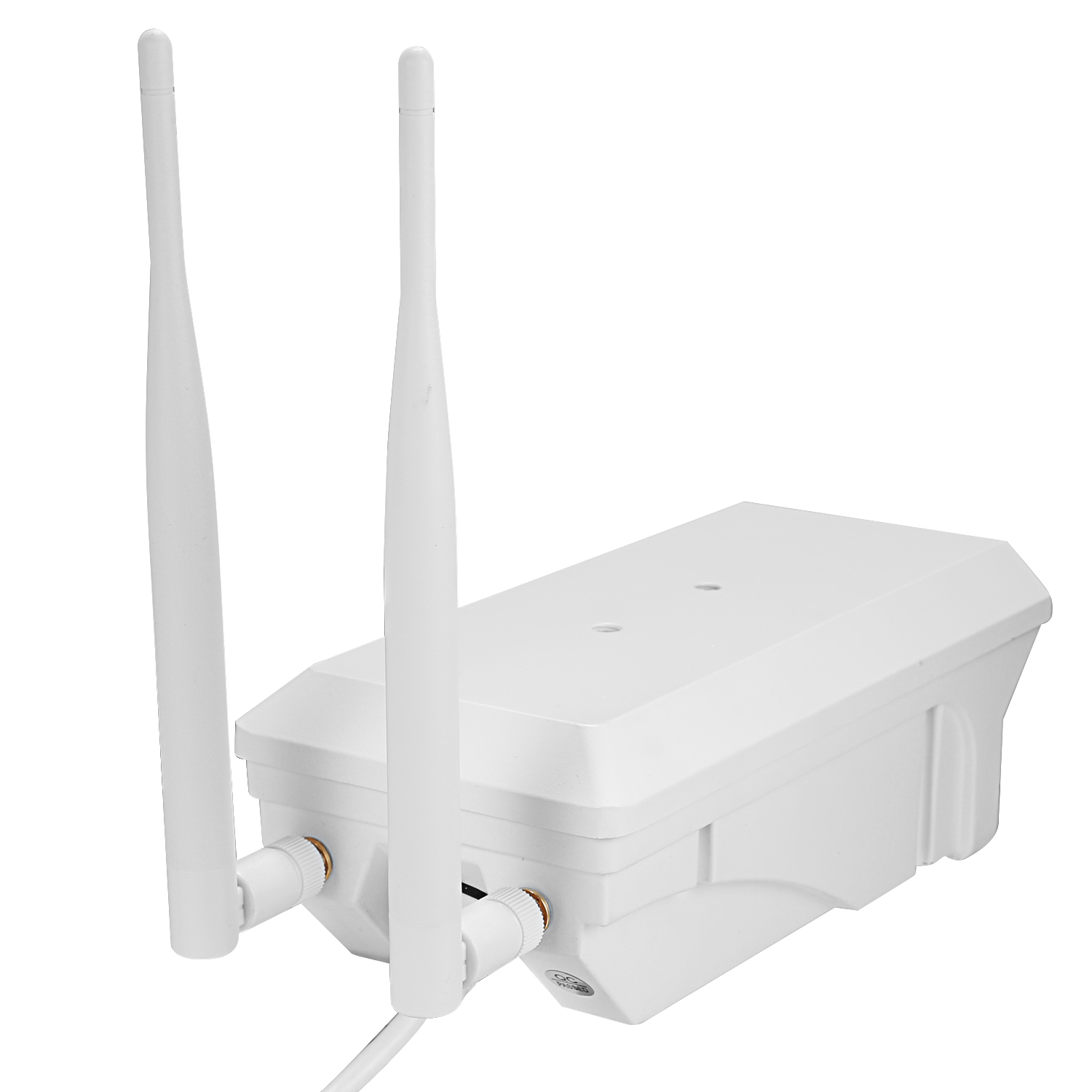

| IP66 Bullet 2.0MP PnP 3G/4G Network Camera | ||
| Camera | ||
| Image Sensor | 1/3'' CMOS Progressive Scan Sensor | |
| Effective Pixel (H×V) | 1920 × 1080 (1080p) | |
| Sensor Performance | AWB, AGC, BLC, AEC | |
| Shutter | 1/50(1/60)s ~1/100,000 s | |
| IR Led | 2Pcs Array IR Lamps | |
| Night Vision | 10m-20m | |
| Minimum Illumination | 0.01Lux @ (F1.2,AGC ON),0 LUX with IR | |
| Day/Night Switch Mode | Build in IR Cut & Auto Control | |
| Lens | ||
| Focus | 3.6mm | |
| Iris | F=1.2 | |
| Angular Field of View (D/H/V) | 89.9°/75.7°/50° | |
| Focus Control | Fixed | |
| Vision Distance | 20m-30m | |
| Video | ||
| Resolution | First stream:1080P(1920x1080), 720P(1280x720), Q720P(640x352) Second stream:Q720P(640x352), QQ720P(320x176) Third stream:QQ720P(320x176) |
|
| Compression | H.264 Video Compression | |
| Video Rate | 32~6144Kbps. supports constant bitrate/variable bitrate | |
| Video Frame Rate | 25fps | |
| SD Card | Max 128G TF Card Storage | |
| OSD Setting | Support camera name and date overload | |
| Image Setting | Brightness、saturation、contrast、Sharpness、Exposure、flip、mirror | |
| Image Enhancement | Digital WDR、 3D Digital Noise Reduction | |
| Local / Remote Access | ||
| Mobile Phone Monitoring | Support IOS and Android OS | |
| PC Client Monitoring | Support Windows XP, Window 7, Windows 10 OS etc. | |
| Privacy mask | Support 4 rectangle areas | |
| User Management | Supports user and rights management | |
| Max Users Access | 4 Users | |
| Alarm | ||
| Alarm Trigger | Motion Detection (4 independent detection region (1-100 sensitivity can be set)) | |
| Alarm Notifications | Send pictures to specific mailbox,; upload pictures and videos to the FTP server; Storage pictures and videos to Micro SD card; Mobile Phone Message Push Notification; |
|
| Network | ||
| Network Interface | RJ45 & Antenna 10M/100M Adaptive Ethernet Interface | |
| Protocol | IPV4, TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP etc. | |
| AP Mode | Supported | |
| 4G | 4G Standard | FDD-LTE |
| Frequency range | B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz) | |
| Transmission rate | Upload max:50Mbps, download max: 150Mbps | |
| Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | |
| 3G | 3G standard | WCDMA |
| Frequency range | B1(2100MHz), B8(900MHz) | |
| Transmission rate | Upload max:5.76Mbps, download max: 21Mbps | |
| Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | |
| Power | ||
| Power Interface | 5.5mm power interface | |
| Power Supply | DC-12V/1A | |
| Power Consumption | Day:<3W, Night:<8W | |
| Reset Button | Support | |
| Environment | ||
| Operate Temperature | -20℃～+60℃(-4℉～+140℉) | |
| Operate Humidity | 10%～95%(non-condensing) | |
| Mounting Type | Rack mounting | |
| Physical Index | ||
| IP Grade | IP66 | |
| Material | Aluminum | |

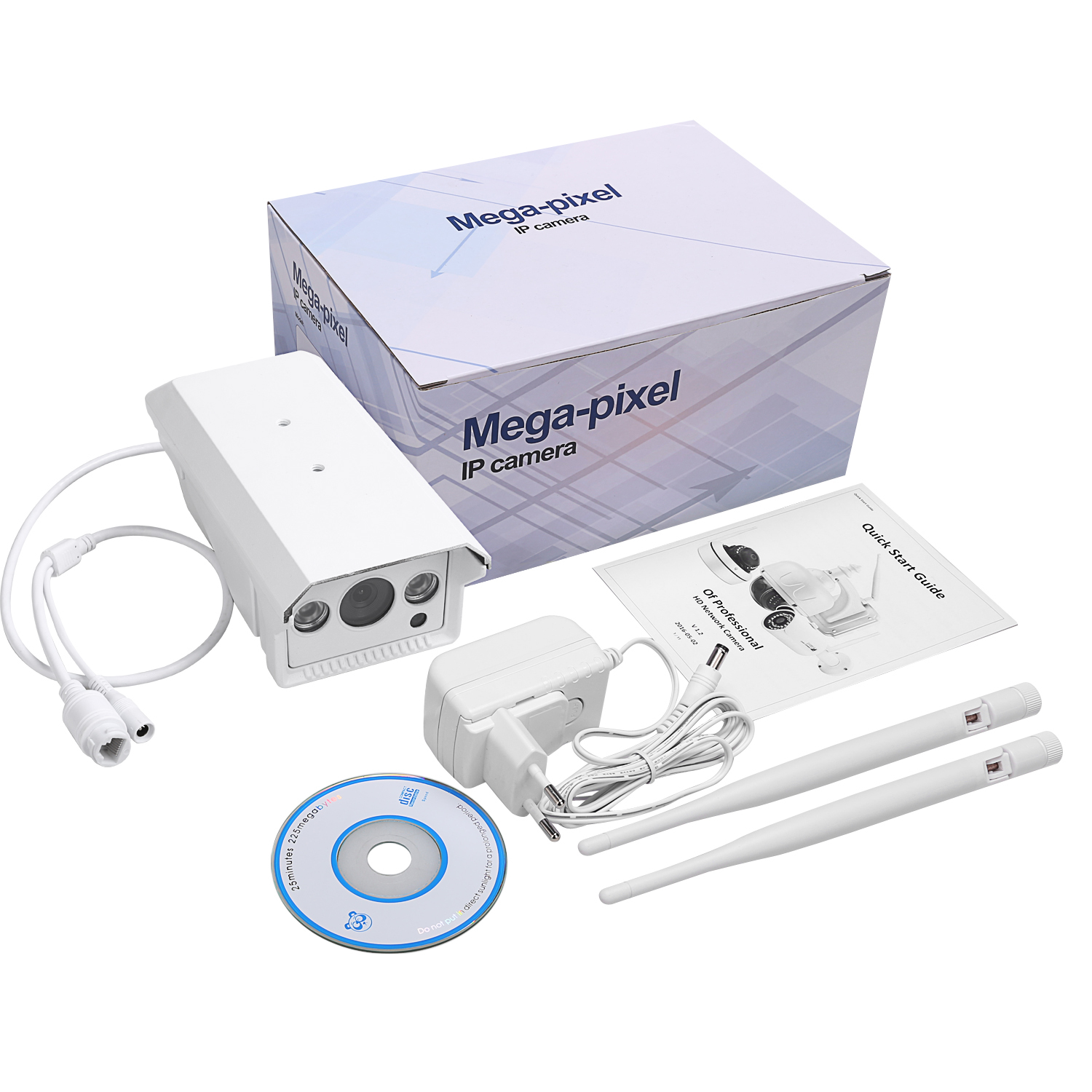

| Accessories | 1*1.5m Power supply, 1*CD, 1bag*Screws, 2*antenna, 1*manual | |
| Net Weight (kg) | 0.55 | |
| Product Size (cm) | 18.5*9.3*6.2 | |
| Gross Weight (kg) | 0.8 | |
| Gift box size (cm) | 21.5x15.5x10.5 | |
| Certification | CE, FCC, ROHS | |
| Warranty | 12 Months | |
