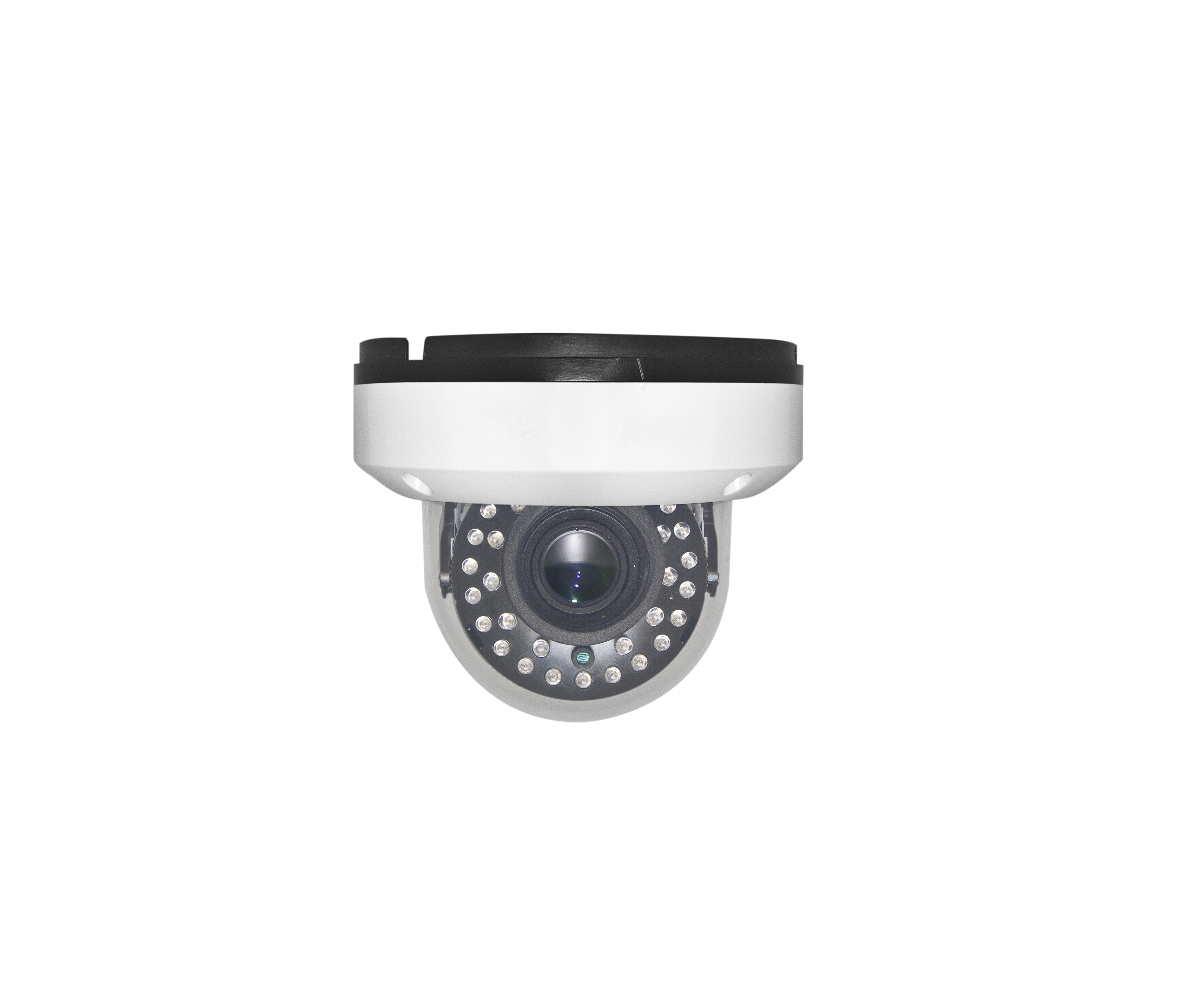

| Vandalproof Motorized Varifocal Lens 20M IR 2.0MP AHD/TVI/CVI/CVBS HD CCTV Camera | |
| Camera | |
| Image Sensor | 1/2.9'' Sony CMOS Sensor |
| Effective Pixel (H×V) | 1920 × 1080 (1080p) |
| Sensor Performance | AWB, AGC, BLC, AEC |
| Shutter | NTSC: 1/60s ~1/100,000S; PAL: 1/50s ~1/100,000S |
| S/N Ratio | ≥ 52dB |
| Scan System | Progressive Scan |
| Vertical Frequency | NTSC: 60Hz; PAL: 50Hz |
| WDR | OFF / ON |
| Defog | OFF / ON |
| DNR | OFF / ON |
| Gamma | 0.45 |
| Lens | |
| Focus | 2.8 - 12mm |
| Angular Field of View | Horizontal: 90° - 28° |
| Focus Control | Auto IRIS Motorized |
| Night Vision | |
| Minimum Lux | 0 Lux(35Pcs IR Led On) |
| Day / Night Switch | IR Cut Filter |
| Available IR Distance | 15m - 20m (49.2ft-65.62ft) |
| Video | |
| Resolution | 1080P (1920*1080)) |
| Output | HD- AHD (TVI / CVI / CVBS) |
| OSD | Yes |
| Power | |
| Power Supply | DC-12V ± 10% |
| Current Consumption | 550mA (MAX) |
| Environment | |
| Operate Temperature | -30℃~40℃ (-22°F`104°F) |
| Storage Temperature | -30℃~60℃ (-22°F`140°F) |
| Mounting Type | Wall / Ceiling |
| Physical Index | |
| IP Grade | IP66 |
| Color | White |
| Net Weight (kg) | 0.8 (28.2oz) |
| Product Size (cm) | 14.55*10.9 |
| Certification | CE, FCC, ROHS |
| Warranty | 12 Months |
