ZM-CAM30-OD Camera is a highly integrated serial JPEG camera module which can be attached to any host system that requires a JPEG compressed still camera for embedded imaging applications. The module uses a 1/3'' CMOS color image sensor along with a DSP chip that provides a low cost and low powered camera system. The module has an on-board serial interface (TTL/RS232/RS485) that is suitable for a direct connection to any host microcontroller UART or a PC system COM port.
ZM-CAM30-OD Camera is capable of outputting JPEG format images only.
ZM-CAM30-OD camera module comes in a compact form factor with a built in lens and a 4 pin PH 2.0 connector that provides easy access to both power and serial data. PC test tool is provided for easy testing.

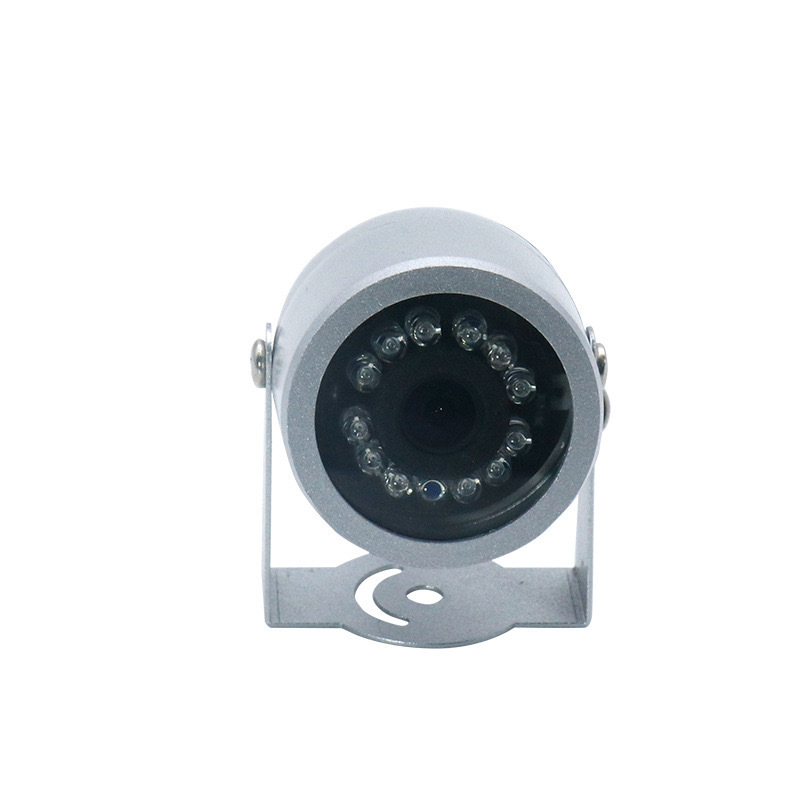

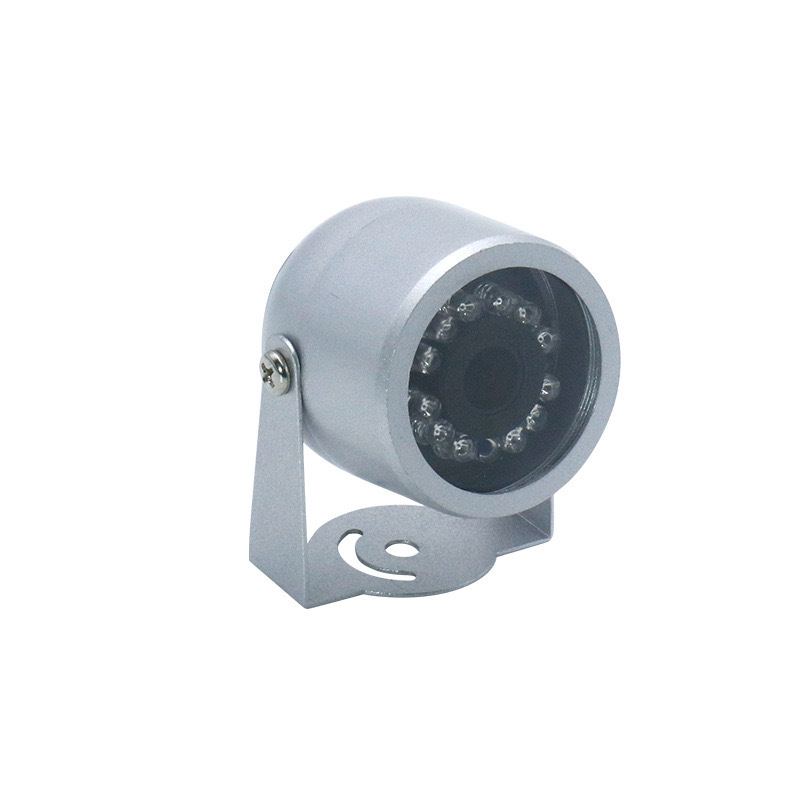

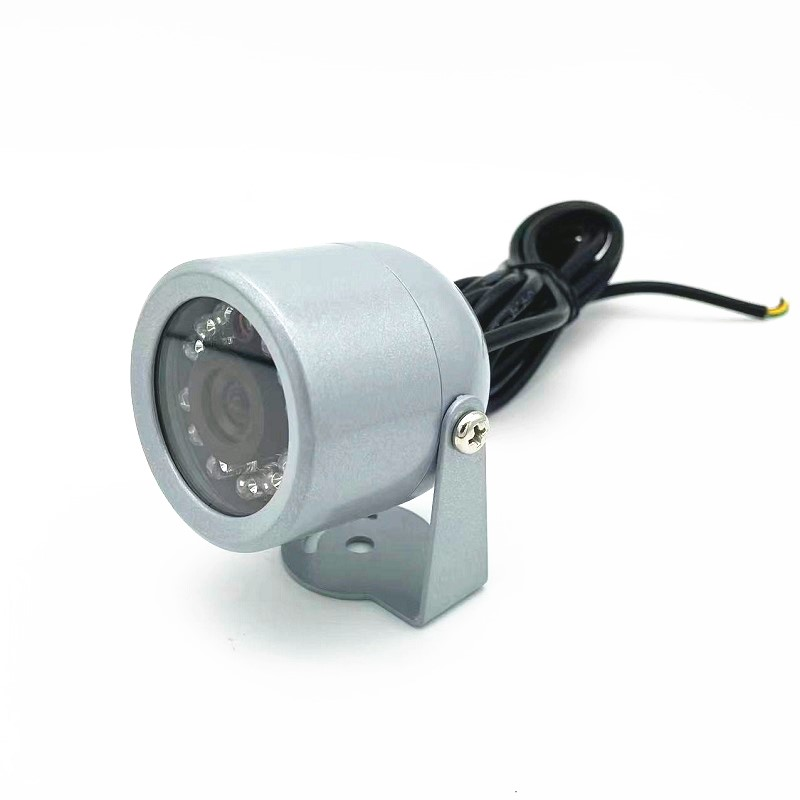

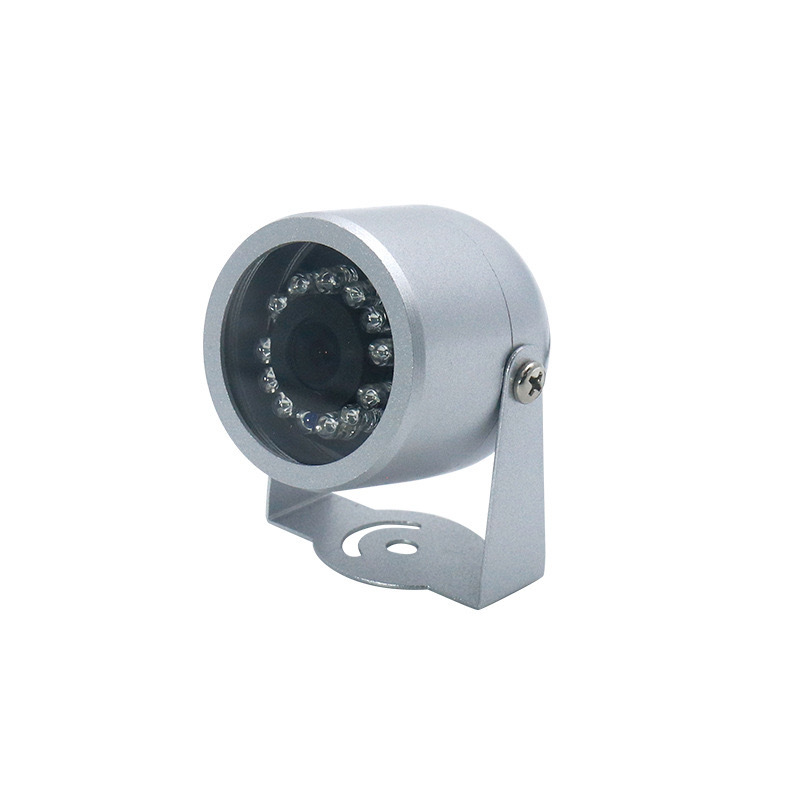

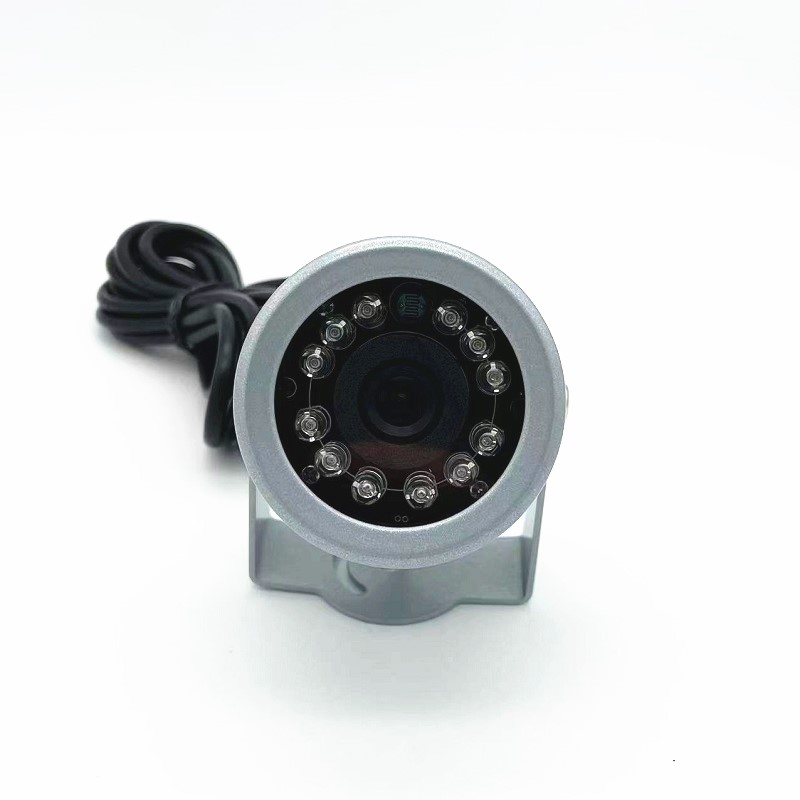

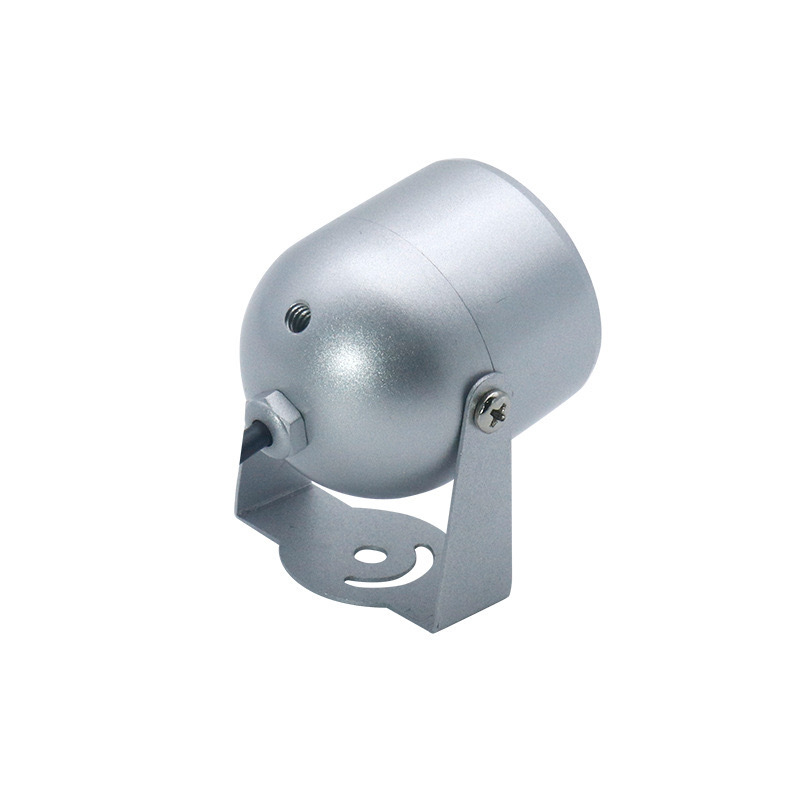

| QQZM 1280x960P 1.3MP ZMID Protocal TTL RS232 RS485 Serial Jepg Camera IR Infrared Uart Camera |
| Image Sensor |
1/3'' CMOS Progressive Scan Sensor |
| Effective Pixel (H×V) |
1280x960 |
| Sensor Performance |
AWB, AGC, BLC, AEC |
| Shutter |
1/50(1/60)s ~1/100,000 s |
| S/N Ratio |
> 50dB |
| Dynamic Range |
> 60 dB |
| IR Led |
Ф5mm 18 850-IR Leds / Ф5mm 18 940-IR Leds |
| Night Vision |
5m |
| Minimum Illumination |
5Lux @ (F1.2,AGC ON), 1 LUX with IR |
| Lens |
| Lens Type |
850 IR Lens / 940 IR Lens |
| Focus |
2.8 / 3.6mm |
| Iris |
F=1.2 |
| Angular Field of View (D/H/V) |
90°/70°/55°(3.6MM for Instance) |
| Focus Control |
Fixed |
| Vision Distance |
12m-15m (3.6MM for instance) |
| Image |
| Resolution |
VGA (640*480) / QVGA(320*240) /QQVGA(160*120) |
| Compression |
JPEG Compression |
| Serial Port |
| Serial Interface |
RS-232 / RS-485 / TTL |
| Camera ID |
Default "0" |
| Protocol |
ZMID / VC0706 / OV528. |
| Baud Rate |
2400bps-115200bps |
| Power |
| Power Supply |
DC-5V / 9-36V |
| Working Current Draw |
IR Off: 60-80mA; IR ON: 130-170mA |
| Cable & Connector |
| Cable Type |
Shielded / Non-shielded Cable |
| Cable Length |
3 Meters / Customization |
| Connector |
DB9 Female or Customization |
| Pin Description |
PIN 1: DC+5V (Red Wire) |
| PIN 2: TxD (Green Wire) |
| PIN 3: RxD ( Yellow Wire) |
| PIN 5: GND (Black Wire) |
| Environment |
| Operate Temperature |
-20℃~70℃ (-4°F`158°F) |
| Operate Humidity |
10%·85% Non-condensing |
| Storage Temperature |
-25℃~80℃ (-13°F`176°F) |
| Storage Humidity |
0%`90% Non-condensing |
| Physical Index |
| Net Weight (kg) |
0.4 |
| Product Size (mm) |
Φ60*66 |
| Gross Weight (kg) |
0.45 |
| Gift box size (mm) |
11(L)*11(W)*10(H) |
| Certification |
CE, FCC, ROHS |
| Warranty |
12 Months |
